Accessories for vineyards and orchards

Over the years, the wide variety of supporting and protective structures on the market has led Comavit to develop a broad line of products, which is the result of continuous collaboration with its clients.

The accessory range for vineyards and orchards produced by Comavit has originated from experience and continuous research with the purpose of finding optimal solutions for every technical need. Moreover, due to the ongoing exchange of information, Comavit’s catalogue is continuously evolving to meet the new needs of farmers. The update involves vineyard wire tensioners, tie rods and hooks for iron wires, plates, protective nets, arms, pole caps, and much more.

All of Comavit’s accessories for vineyards and orchards have been studied according to the following principles:

Easiness of installation
Low need for maintenance
Guarantee of mechanical resistance to atmospheric conditions
Higher durability than that required by the plant

Wire Tensioning

Description	Article	Pieces per Box	Kg. per Box
Reinforced hot-dip galvanized tensioning collar (various sizes)	CRZ-7X7,5 CRZ-7X8 CRZ-8X8,5 CRZ-9X9 CRZ-9X9,5 CRZ-10X12 CRZ-13X14	50 50 40 30 40 30 30	21.00 kg 22.50 kg 19.00 kg 14.00 kg 20.00 kg 15.00 kg 19.5 kg
Sendzimir galvanized reinforced tensioning collar (various sizes)	CRPZ-9X9,5 CRPZ-10X12	30 30	13.50 kg 14.50 kg
Reinforced hot-dip galvanized super tensioning collar	CRZS-10X12	25	37.50 kg
Stainless steel tension collar (various sizes)	C10-7X7,5 C10-7X8 C10-8X8,5 C10-9X9,5 C10-10X12	100 100 100 100 100	10.50 kg 11.00 kg 12.00 kg 12.50 kg 13.50 kg
Stainless steel tensioning collar for wooden pole (various sizes)	C30-90 C30-100 C30-110 C30-120 C30-130 C30-140 C30-160	100 100 100 100 100 100 100	12.50 kg 13.50 kg 13.50 kg 14.00 kg 14.50 kg 14.50 kg 15.00 kg
Reinforced stainless steel hook for complete tie rod	GR	100	20.00 kg
Reinforced hot-dip galvanized hook for complete tie rod	GRZ	75	20.00 kg
Hook for tie rod	G12	100	5.00 kg
Reinforced galvanized super hook for tie rod	GRZ S	7	6.00 kg
Super reinforced galvanized hook 2 rollers per tie rod	GRZ S-2R	5	7.50 kg
Super reinforced galvanized hook 3 rollers per tie rod	GRZ S-3R	5	11.00 kg
INOX roller for metal header post	R-TEST R-TESTCR	100 100	7.50 kg 7.00 kg
Hot-dip galvanized roller for metal header post	R-TESTZ R-TESTZ-CR	100 100	7.50 kg 7.00 kg
Solid INOX roller, easy-adjust.	R-TESTCE	100	8.00 kg
INOX roller for drilled wooden post	R-TESTLE-U	100	8.50 kg
Lightweight wire tensioner	TF-DS95	100	6.90 kg
Self-stretching tension clamp	TF-MA15 TF-MA38	1 1	0.25 kg 0.85 kg
Tirvit F2 wire diam. 2,00 - 8,00 mm	TF-TIRF2	1	4.00 kg
Gripple wire connectors (various sizes)	GRI-G1 GRI-G2 GRI-G3 GRI-GP1	300 200 120 500	6.00 kg 5.50 kg 5.50 kg 11.50 kg
Dynamometric Tensioner	GRI-PINZA	1	1.30 kg

Vegetation Management

Description	Article	Pieces per Box	Kg. per Box
Spring with pin for paired wires	AMM-1R	25	16.00 Kg
Spring with collar for paired wires	AMM-1R-8x8,5 AMM-1R-9x9,5	25 25	15.00 15.50
Spring for paired wires with plate for wooden post	AMM-2O-LEG	25	13.00
Spring for paired wires with plate for steel post	AMM-2O	25	15.00
Steel chain tension spring	97Z	100	19.80
Chain tensioner collar	28-8x8,5 28-9x9,5 28-10x12	100 50 50	6.50 3.50 3.80
Chain tensioner spring for steel post	28-KRAT 28-CRON	100 100	3.20 3.12
Galvanized Chain 3.1 X 7 mm	CAT-CRA	100	5.30
Stainless steel chain 2.50 mm	CATENA	25 m	2.50
Crapal nail for chain 4.20 X 55 mm	CRAP-CHIO	1 bucket	5.00
Crapal nail for chain 3.4 X 40 mm	CRA-CHIO CRA-CHIO55 CRA-CHIO60	1 bucket 1 bucket 1 bucket	5.00 5.00 5.00
Crapal barbed staple	CRA-CA35 CRA-CA40 CRA-CA50	1 bucket 1 bucket 1 bucket	5.00 5.00 5.00
Sunflower Tensioner Reel	RO-GIR RO-GIR MAXI	100 50	10.00 10.30
Plus stainless steel spring spacer (ø 2.5 mm length 210 mm)	DIST-I-2,5X210A DIST-I-2,5X210B DIST-I-2,5X210Z DIST-ZN-2,8X210A DIST-ZN-2,8X210B	100 300 300 500 100	5.00 12.00 12.50 24.00 5.00
Vertical hook for brace diameter 6/10, 10/16, 22/24	Hook-06/10 Hook-10/16 Hook-22/24	2,000 1,000 1,000	5.00 4.50 5.00
Anti-hooking stainless steel tie for shoot (minimum length 100 mm maximum length 180 mm)	19R 19H 19MAXI	2,000 2,000 1,000	8.50 8.50 4.80
Stainless hook for driplinev	19LO-20 19LO-25	1,000 1,000	5.50 5.80
Hook on binding for progressive wires	90	1,800	9.00
Stainless annealed wire tie 1.20 mm (various sizes)	71-7x7,5 71-9x9,5	2,000 2,000	16.50 13.00
BAUMFIX Galvanized Hook (various sizes)	BAU-7x7,5 BAU-7X8 BAU-8X8 BAU-8X8,5 BAU-9X9,5	500 500 500 500 500	12.00 13.00 13.00 13.50 15.00
Concrete post wire blocker	POSTFIX250 POSTFIX285 POSTFIX320	1,000 1,000 1,000	18.00 20.00 22.00
Metal hook for plant	TREEFIX	500	5.40
Elastic barb-tie (various sizes)	ELA-AB5 ELA-AB8 ELA-AB10 ELA-AB15	20x500 un/box 20x300 un/box 16x440 un/box 16x240 un/box	12.00 12.00 16.00 17.00
Plastic hook for plant (length 18.5 cm for wire diam. 2.2 to 3.0 mm)	B2	2,000	14.00
Plastic wire tube “brown”	FILP-TUB 3 G FILP-TUB 4 G FILP-TUB 5 G FILP-TUB 6 G	12 12 12 12	12.50 12.50 12.50 12.50
Plant shelter (various sizes)	SHE400 SHE500 SHE600	3,000 2,000 2,000	163.00 140.00 150.00
Ribbed stakes (available in different diameters and lengths)	TONDXXX

Hail and Rain Protection

Description	Article	Pieces per Box	Kg. per Box
Anti-sinking plate for concrete post	PASEND	250	685.00
Anti-sinking plate for steel post	PASEND-TE	50	24.00
Rope fastening clamp (various sizes)	SBF-M10-7 SBF-M10-8 SBF-M10-9/10 SBF-M10-13	100 100 25 25	27.50 32.00 9.00 11.00
Galvanized ring	AN-FRZ	100	11.00
Galvanized clamp	MZFUNE65 MZ-FUNE8 MZ-FUNE10 MZ-FUNE12	500 250 250 100	19.00 21.00 22.00 25.80
S-hook	GANCIO S	100	0.85
Galvanized carabiner	MOSC-6x60 MOSC-8x80	1,000 400	30.00 25.00
Clip "Easylink" to join net ends	PL-EASYLINK	250	16.00
Clip for net and cloth tensioning	PL-MAG	800	25.00
Small clip for net and cloth tensioning	PL-MAG-MINI	250	4.00
Ridge wire clip "Netfix"	PL-NETFIX	500	8.50
Two-pointed clip	PL-2P	500	5.00
Three-pointed clip	PL-3P	1	0.021
Twelve-pointed clip	PL-12P	500	8.00

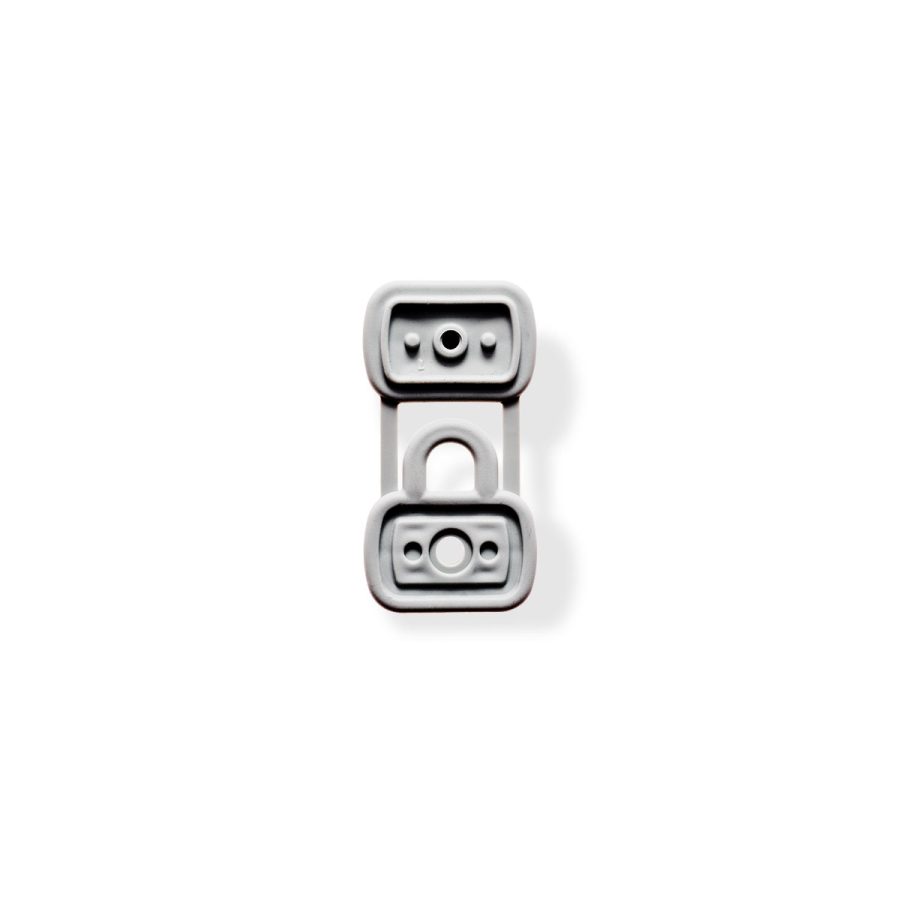

Morsa 40	MORSA40	500	7.50
Morsa 50	MORSA50	500	5.50
Net tensioning clip (50x45 mm)	PL-ANCORPLACK	2,500	22.00
Large clip for net tensioning (130x42 mm)	PL-ANCORPLACK 2	400	14.00
Net junction clip	PL-COP	500	4.30
Clip with hook	PL-HARP	250	3.60
Small clip with hook	PL-HARPMINI	250	3.60
Clip with eyelet	PL-MAN	250	10.80
Plastic hook for fixing the net/top rope	GPL-COLMO5	1,200*	17.00
Hook hook for attaching and tensioning the rain cloth	GPL-UNCINO	2,000*	16.00
Hedgehog hook for attaching and tensioning the rain cloth	GPL-RICCIO	2,000	16.00
Hook with carabiner for attaching rain cloth	GPL-MOSCHET	850	10.00
Galvanized sewing needle	AGO-ZINC	1,000	11.40
Plastic sewing needle	AGO-PLAST	250	1.00
Self-locking carabiner	MOSC-AUTO	2,000	20.00
Oval carabiner for anchoring tarpaulins and nets	MOSC-OVALE	3,000	5.00
Chain for ridge clip	PL-CATEN	500	10.00
Clip for chain fixing	STOP NET GANCIO	2,250	14.00
Clip for film fixing with wrapping chain	STOP FILM	250	9.70
PET elastic 8 mm	ELA-CORDA	100 / 200 m	9.70
PVC elastic rope ø 8 mm	PVC-BUNGEE	250 m	9.00
Tube for Whailex system	TU-AVV	3 m	0.93
Whailex system joint	TU-AVV-R	1	0.0142
Crank for Whailex system	TU-AVV-M	1	0.97
Whailex net fixing clip	TU-AVV-C	1	0.0096

Arms

Galvanized arms are a reliable solution for supporting growing plants. Consisting of a galvanized steel structure, they offer high resistance to corrosion and rust. The hot-dip galvanizing process ensures greater durability of the product, extending its service life. Galvanized booms are ideal for supporting climbing plants, vines and fruit trees, capable of withstanding high loads and giving plants a form of husbandry that ensures their healthy and productive growth. They can be used in both open field crops and greenhouses, and can be combined with other support elements, such as steel wires or netting, to create a complete support system. Their ease of installation and adjustment, coupled with the possibility of removal and reuse, make galvanized booms a versatile option for a variety of agricultural needs.

	Description
	Spacer with “L” profile for intermediate concrete posts, made of pre-galvanized steel in lengths from 60 to 120 cm, complete with U-bolt for fastening to the post.
	Lightweight end arm complete with wire-tensioner and U-bolt for fixing to the post, made of pre-galvanized steel in lengths from 40 to 100 cm.
	Kiwi straight arm for intermediate posts in lengths from 120 to 300 cm, complete with U-bolt for fixing to the post and wire support rings.
	Kiwi curved arm for intermediate posts in lengths from 120 to 300 cm, complete with U-bolt for fixing to the post and wire support rings.
	Kiwi brace with sloping sides for indoor posts, produced in lengths from 200 to 300 cm, complete with jumper for fixing to the post and through-hole.
	Tubular arm “Pergola” for intermediate posts, produced in lengths between 120 and 300 cm, complete with U-bolt for fixing to the post and wire support rings.
	Heavy end arm complete with wire tensioners and post fixing kit.

Netting and Foil

	Description
	Professional black anti-hail 8x2.8mm
	Professional gray hail protection 8x2.8mm
	Professional krystal hail protection 8x2.8mm
	Antihail altcarpo 4/4 - 2.2 x 5.4 mm
	Insect repellent 8/8 - 1mm x 1 mm
	Insect repellent 8/10 - 1 mm x 0.8 mm
	Insect repellent 16/10 - μm 490 x 770
	Insect repellent 20/10 - μm 270 x 770
	Hail prevention / shading 20%.
	Hail prevention / shading 30%
	Hail prevention / shading 40 %
	Hail prevention / shading 75%
	Hail prevention / shading 90%
	Rain net 250 g/m2
Laminated Coextruded copolymer film	Total transmittance of PAR (400÷700 nm) 93.1%<br /> Diffuse light (% of PAR) 39,2% <br /> Direct light (% of PAR) 60,8% <br /> UV transmittance (280÷380 nm) 58%<br /> Thermal withholding 65% <br /> Mechanical strength 27,6 - 32,5 MPa
Mesh PE-HD Fabric	Total transmittance of PAR (400÷700 nm) 80.7%<br /> Diffuse light (% of PAR) 46,6%<br /> Direct light (% of PAR) 34,1%<br /> UV transmittance (280÷380 nm) 85,5%<br /> Thermal withholding 45%<br /> Mechanical strength 64 kg MD/86 kg TD
Laminated UVA Film PE-LED	Total transmittance of PAR (400÷700 nm) 81.5%<br /> Diffuse light (% of PAR) 23,1%<br /> Direct light (% of PAR) 58,4%<br /> UV transmittance (280÷380 nm) 8,6%<br /> Thermal withholding 49,2%<br /> Mechanical strength 16-18 MPa

Caps

Comavit hood caps are made with high UV-resistant plastic to ensure durability even beyond that of the hail protection structure. Available for concrete, metal and wooden posts, they can be combined with screw sets to fix wires and cables of antihail and antirain systems.

Description	Section	Art. Kit Optional	Art. Kit Capannina	Pieces per Box	Kg. per Box
Concrete post cap	7x7,5 7x8 8x8,5 9x9,5 10x12 13x14	C-OPT 7x7,5 C-OPT 7x8 C-OPT 8x8,5 C-OPT 9x9,5 C-OPT 10x12 C-OPT 13x14	C-CAP 7x7,5 C-CAP 7x8 C-CAP 8x8,5 C-CAP 9x9,5 C-CAP 10x12	50 50 40 40 20 8	29.00 - 23.50 32.00 - 27.00 26.00 - 22.00 25.00 - 19.00 14.00 - 11.50 6.80
Wooden post cap	Diam. < 100 mm Diam. < 130 mm Diam. < 140 mm Diam. < 160 mm	C-AT 100 C-AT 130 C-AT 140 C-AT 160	C-CAP 100 C-CAP 130 C-CAP 140 C-CAP 160	20 48 20 24	6.70 - 4.50 20.00 - 14.50 8.20 - 6.00 13.00 - 10.50
End steel post cap	46x56 mm 56x67 mm	C-OPT CRON C-OPT KRAT		60 60	8.50 8.00
Intermediate steel post cap	60x40 mm 65x45 mm	COPRI-BACCUS COPRI-ZEUS		20 20	8.50 8.00

Description

Section

Art. Kit Optional

Art. Kit Capannina

Pieces per Box

Kg. per Box

Concrete post cap

7x7,5

7x8

8x8,5

9x9,5

10x12

13x14

C-OPT 7x7,5

C-OPT 7x8

C-OPT 8x8,5

C-OPT 9x9,5

C-OPT 10x12

C-OPT 13x14

C-CAP 7x7,5

C-CAP 7x8

C-CAP 8x8,5

C-CAP 9x9,5

C-CAP 10x12

29.00 - 23.50

32.00 - 27.00

26.00 - 22.00

25.00 - 19.00

14.00 - 11.50

6.80

Wooden post cap

Diam. < 100 mm

Diam. < 130 mm

Diam. < 140 mm

Diam. < 160 mm

C-AT 100

C-AT 130

C-AT 140

C-AT 160

C-CAP 100

C-CAP 130

C-CAP 140

C-CAP 160

6.70 - 4.50

20.00 - 14.50

8.20 - 6.00

13.00 - 10.50

End steel post cap

46x56 mm

56x67 mm

C-OPT CRON

C-OPT KRAT

8.50

8.00

Intermediate steel post cap

60x40 mm

65x45 mm

COPRI-BACCUS

COPRI-ZEUS

8.50

8.00

Anchors

A fundamental part of the vineyard or orchard structure is, without a doubt, the anchorage. That's the anchorage system. It can take several forms, but all are intended to provide a firm and secure attachment point to which wires can be attached to support the vines and shoots. The most common is the anchor with a back tie rod. Anchors with either concrete or helical bases can be used.

Description	Article	Measurements	Weight
Concrete plate	AB-30 AB-40 AB-50 AB-60	ø 30 cm ø 40 cm ø 50 cm ø 60 cm	11.50 Kg 21,00 Kg 40.00 Kg 60.00 Kg
Galvanized rod	AZ12120 AZ12150 AZ14120 AZ14150 AZ14170	ø 12 mm 1200 ø 12 mm. 1500 ø 14mm. 1200 ø 14mm. 1500 ø 14mm. 1700	1.50 Kg 1.80 Kg 2.00 Kg 2.30 Kg 2.60 Kg
Ungalvanized anchor	EG2615306 EG2615308 EG2615408	ø 26 mm H 1500 mm Helix ø 300 mm Th. 6 mm ø 26 mm H 1500 mm Helix ø 300 mm Th. 8 mm ø 26 mm H 1500 mm Helix ø 400 mm Th. 8 mm	10.10 Kg 11.00 Kg 14.40 Kg
Galvanized anchor	EZ120814 EZ121014 EZ141218	ø 12 mm H 800 mm Helix ø 140 mm ø 12 mm H 1000 mm Helix ø 140 mm ø 14 mm H 1200 mm Helix ø 180 mm	1.00 Kg 1.30 Kg 2.20 Kg
Plate anchor	AP1216250 AP1220250 AP1616500 AP1220250 AP1616500	ø 12 mm H 1600 mm Plate 250 sq.cm Th. 12 mm ø 12 mm H 2000 mm Plate 500 sq.cm Th. 12 mm ø 16 mm H 1600 mm Plate 250 sq.cm Th. 10 mm ø 16 mm H 2000 mm Plate 700 sq.cm Th. 6/11 mm ø 16 mm H 2000 mm Plate 1400 sq.cm Th. 6/11 mm	6.35 Kg 6.95 Kg 8.05 Kg 9.75 Kg 13.35 Kg
